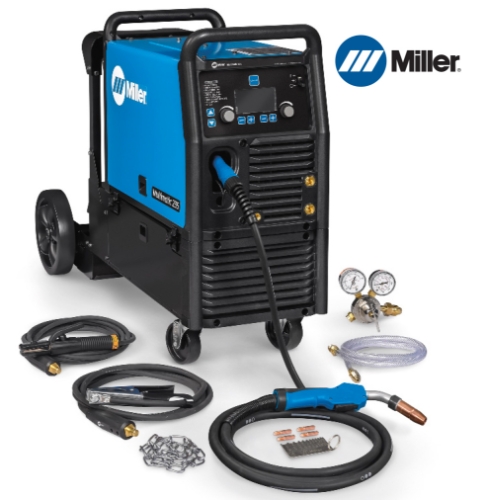

Multimatic® 235 Welder w/EZ-Latch Running Gear 240V™

• Auto-Gun Detect™
• 14-pin controlled operator alternative
• DC Pulse – adjustable from Off–150 pulses per second (PPS)
• TIG Post-Flow – adjustable
• DC Lift-Arc™
• MIG (GMAW) flux core (FCAW)
• TIG DC (GTAW-DC)/ Stick (SMAW)
• 240 V, single-phase
• MIG: 170 A at 22.5 V, 60% duty cycle
  Stick: 150 A at 26 V, 60% duty cycle
  TIG: 180 A at 17.2 V, 60% duty cycle
• MIG: 24 ga.–3/8 in. steel
  18 ga.–3/8 in. aluminum
  DC stick: 16 ga.–3/8 in. steel
  DC Lift-Arc™ TIG: 24 ga.–1/4 in. steel

Complete with:

• Power source w/ 7 ft. power cord
• 15 ft. 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ MDX consumables for .030/.035 in. wire
• 10 ft. cable w/electrode holder & 50 mm Dinse-style connector
• 10 ft. work cable w/clamp & 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• Extra contact tips
• .030/.035 in. reversible drive rolls
• EZ-Latch™ single-cylinder running gear
• Chain to secure gas cylinder
• Material Thickness Gauge
