- For swing gate systems up to 20 ft. and 800 lbs. per gate
- For commercial duty applications
- Battery Operated, Solar or AC Charged Swing Gate Operator

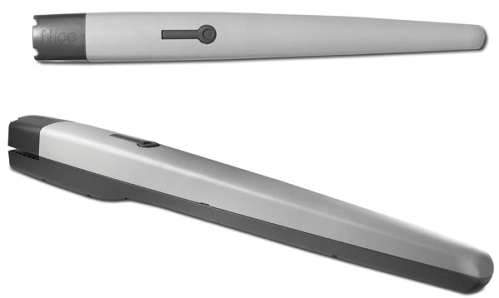

The new generation model is resistant to atmospheric conditions thanks to the housing, made up of two tough aluminum shells with polyester paint finish which assures high quality and durability. It has a smooth and compact look and the practical connection compartment allows for easy installation and maintenance. The new actuator has an external quick release with key that allows for manual operation.
The T7 uses an advanced circuit board which features additional inputs for a firebox, photoeyes, locks, siren, strobe light and more. Additionally, the circuit boards have inherent safety features that comply with the UL325 standards.
AVAILABLE OPTIONS:
- AC Trickle Charger or Solar Panel
- Complete line of Radio Transmitters and Receivers
- Wired or Wireless Digital Keypad
- Wired or Wireless Exit Buttons
- Intercom System
- Telephone Entry System
- Locks – Magnetic, Solenoid
- Safety and Free Exit Loop detectors
- Safety Edges
- 3-Buttons Control Stations
- Exit Probe Detectors
- Photoeye Detectors
Features of Circuit Board
- Automatic, Adjustable Close Timer
- Adjustable Dual Gate Delay
- Adjustable Current Sensitivity for Automatic Safety Reverse;
- Inputs for: Free Exit Loops, Safety Loops, Under Gate Loops, Safety Edges, Free Exit Probes, Keypads, Telephone Entry System, Intercom System, Push buttons, Locks, Radio, Receivers, Photoeyes
- Full systems capable
- Cycle Time:17 to 22 sec. (90°)
- Control Box Dimension:18” x 18” x 8”
- Control Box Finish:Powder Coated Black
- Warranty:Two-year limited warranty
