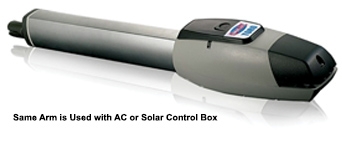

Toro 24 Swing Actuator

GTTT24A

Easy Limit Switch Setup

Choose from AC or Solar Powered 24V System

Same Arm is Used with Either Control Box

Batteries Included

Best for Use with Residential Gates

Gate Capacity: 800 LBS / 16 FT

Price: Please Call for Current Pricing
    Select:


    Update price
    Quantity:
    • Color-coded wiring for arm
    • Extensive photo-eye wiring instructions
    • Manual key release
    • Built-in volt meter
    • LED indicators for limits
    • Magnetic switches for easy access and slide adjustment
    • English/Spanish diagnostic screen
    • Programmable logic board
    • Advanced charge controller enhanced for solar applications
    • Large control box for accessories with keyed lock
    • Powder-coated plated steel for extra rust protection
    • Batteries included with both solar and AC
    • 2016 UL 325 & UL 991 compliant
    • Warranty from All-O-Matic: 4 year residential, 3 year commercial
    • Motor: 24 VDC Motor
    • Duty Cycle: Continous
    • Power options: 120/220 VAC single phase
    • Dimensions: 15" W x 9.5"L x 25" H
    • Max gate weight and length: 800 lbs/16 FT
    • Gate travel speed: 15-20 seconds per 90 degree opening
    • Operator Weight: 23 lbs. Actuator and arm and 42 lbs. Control box
    • Emergency release options: Keyed manual release knob
    • Batteries included
    • AC Control board: Two 7 AH batteries 12VDC
    • Solar Control board: Two I4 AH batteries 12VPC
    • Battery backup: Integrated, capable of up to 450 cycles (single swing gate 12FT/800lbs.)
    • Solar capabilities: 12VDC or 24VDC
    • Solar panel input up to 80 watts
    • Solar charge controller technology: Maximum power point tracking for efficiency

    Related Items:

    Sealed 12 Volt Backup Battery Access control, gate operators, viking, doorking, liftmaster, apollo, eagle, swing gate, slide gate, BFT, Ramset, loop detctor, transmitter, 315 MHz, 2.0 technology, superior gate operaator, phobos, oxi receiver, residential swing gates, wireless keypads, ramset, electromagnetic lock ,Maglock, access controller, push to exit, proximity reader, cellular callbox, telephone entry system, board kit, intercom, photoeye kits, seco-larm, EMX, click2enter, emergency entry box, lead-acid battery, THALIA, conduit, screw connector, back-up power

    Sealed 12 Volt Backup Battery

    GTEBT12

    Price: Please Call for Current Pricing

    View
    MultiCode Hand Held Transmitters Access control, gate operators, viking, doorking, liftmaster, apollo, eagle, swing gate, slide gate, BFT, Ramset, loop detctor, transmitter, 315 MHz, 2.0 technology, superior gate operaator, phobos, oxi receiver, residential swing gates, wireless keypads, ramset, electromagnetic lock ,Maglock, access controller, push to exit, proximity reader, cellular callbox, telephone entry system, board kit, intercom, photoeye kits, seco-larm, EMX, click2enter, emergency entry box, lead-acid battery, THALIA, conduit, screw connector, back-up power

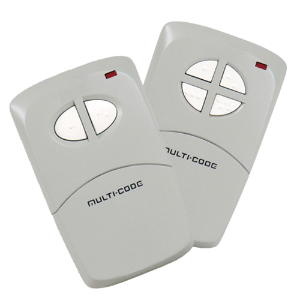

    MultiCode Hand Held Transmitters
